Auto Darkening Welding Helmet

  • Optical Class:1/1/1/2 or 1/1/1/1
  • Viewing Area:100×93mm(3.94"×3.66")
  • Shade Control:External & Stepless
  • Switching Time:1/10000S +_20% or 1/25000S+_20%
  • Sensitivity Control:External & Stepless
  • Delay Time:0.1S~1S
  • Power Supply:Li-battery & Solar
  • Rated Capacity Of Li-Battery:600mAh
  • Replaceable Battery:yes
  • Operating Temp.:-5℃~55℃
  • Storing Temp.:-20℃~70℃
  • Low Amperage TIG Rated:≥5amps
  • Helmet Material:PA or PP
Hits:  【Print

Product Detail

Rechargeable Li-Battery Power the Fan & LED

1/1/1/1 Highest Optical Class

1/25,000 sec. Fast Switching Speed

Shade Range 5-9/9-13 for More Welding Applications

LED Lighting, Up to 5 hours of work

Fan cooling, Up to 40 hours of work

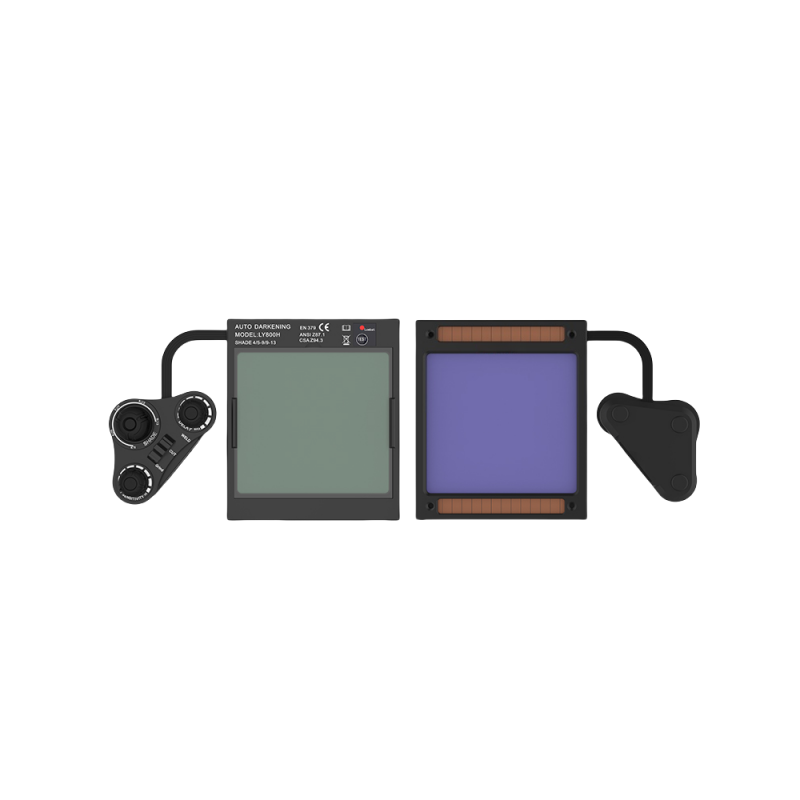

Premium Arc SensorsThis product builds four arc sensors inside, each sensor can work independently and detect welding arcs easily.The arc sensor focuses on the welding arcs without any interference from surroundings.

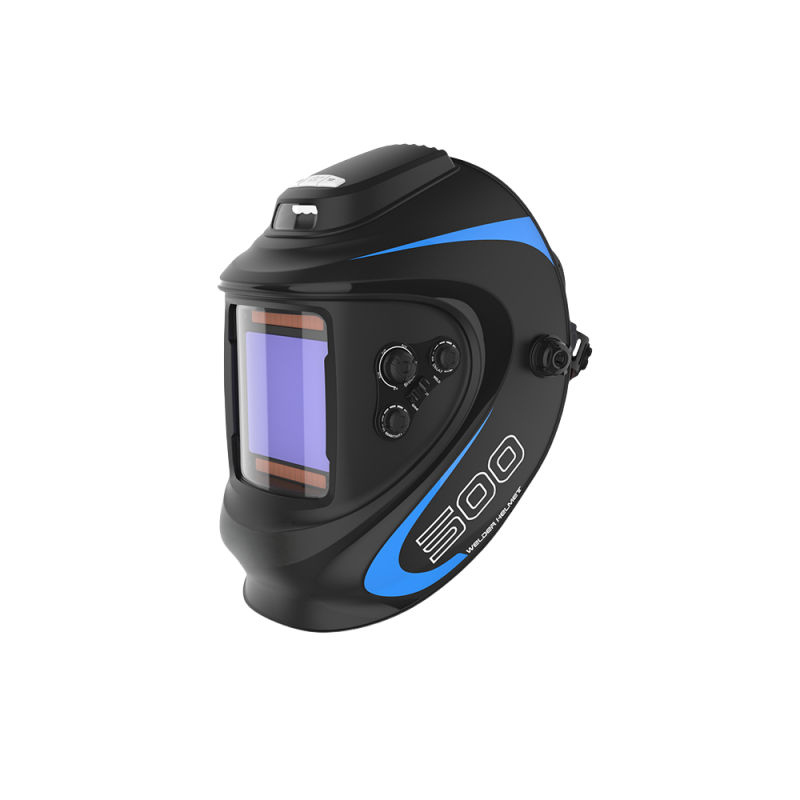

Shade/Sensitivity/Delay Time Stepless AdjustmentKnob design with clear interface, you can easily adjust control knob to achieve shade, delay time from 0.1 to 1 seconds, sensitivity from low to high level.

Shade Range 5-9/9-13For most welding/cutting applications, also including grinding mode.

LED LightingIn case of low ambient light, the welding helmet can automatically turn on the LED light.

Fan coolingWhen you feel hot, you can turn on the fan to dissipate heat to improve comfort.
